StamiNa+ sodium-ion
Every 12V sodium-ion battery pack in the StamiNa+ range is built on the same NaCR32140-MP10 cell, in four SKUs from 10 Ah to 30 Ah. They are supplied as bare soft packs on 200 mm flying leads for manufacturers and integrators to design into their own products, with the smart battery management system already fitted.
All four are rated at least 5,000 cycles to 70% capacity or above, charge from −20°C to +60°C and discharge from −40°C to +70°C.
A soft pack is a finished battery without a case: cells, interconnects and a battery management system, wrapped and terminated on 200 mm flying leads — red positive, black negative — ready to drop into an enclosure you have already designed. There is nothing to strip out and no case to work around.
The range is deliberately narrow. Choosing a 12V sodium-ion battery pack here means choosing a capacity and a shape, not a different technology: the chemistry, the nominal voltage, the cell, the cycle rating and the temperature limits are identical across all four SKUs. What changes between them is capacity, physical envelope, weight and the maximum current the pack will take and deliver.
Every pack ships with a smart BMS providing over-charge, over-discharge, over-current and short-circuit protection, with passive cell balancing. Supplied by AceOn Renewables Africa, a Ugandan company owned and led from Wakiso District, with the battery management system developed by AceOn Group UK over 30+ years in batteries.

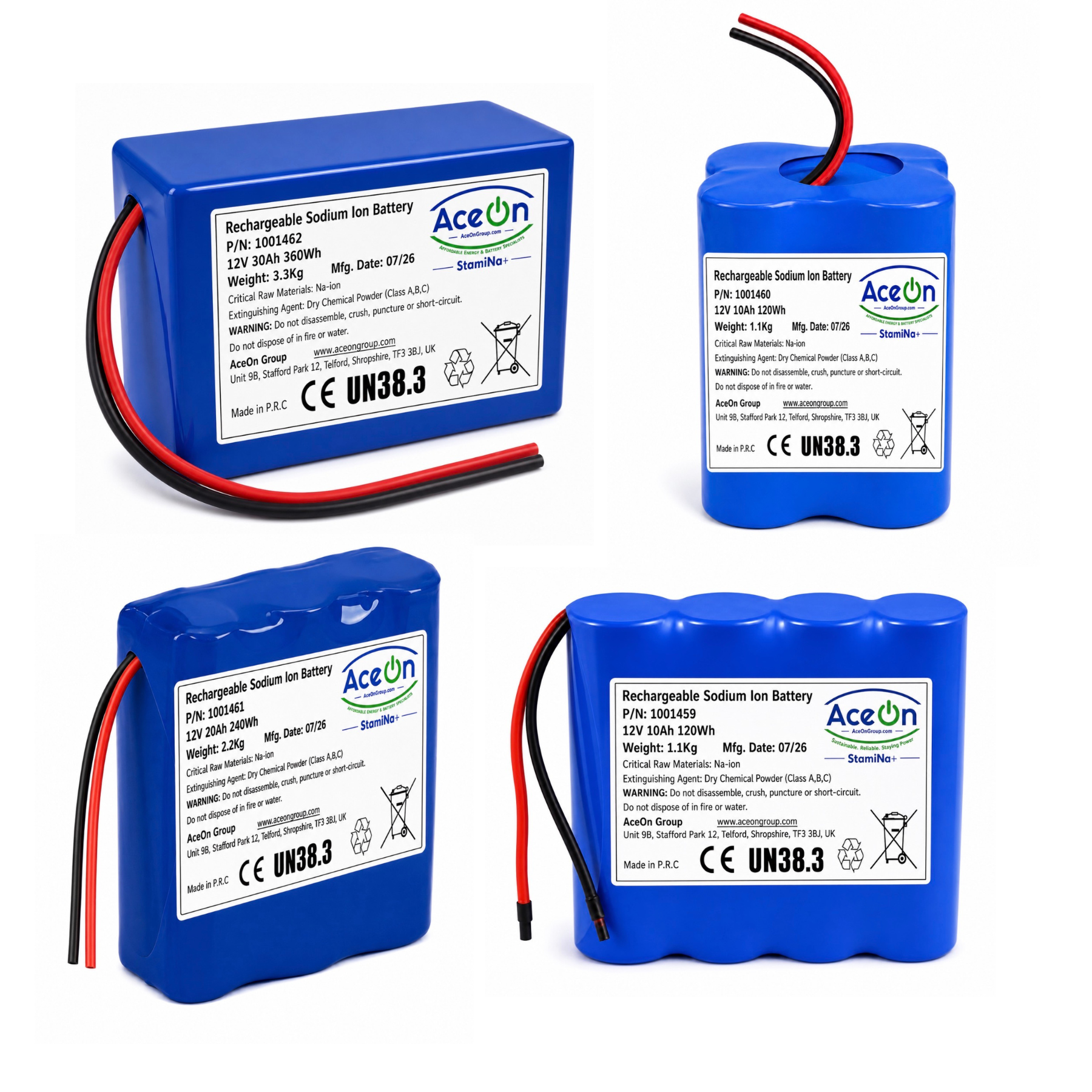

10 Ah, 20 Ah and 30 Ah. The 10 Ah pack comes in two footprints — a flat one and a cube — which are the same pack electrically and carry separate part numbers only so you can order the shape that fits.
One pack, two footprints. Electrically identical — the same cells, the same 5 A limits and the same 1.1 kg. Choose on enclosure fit alone.

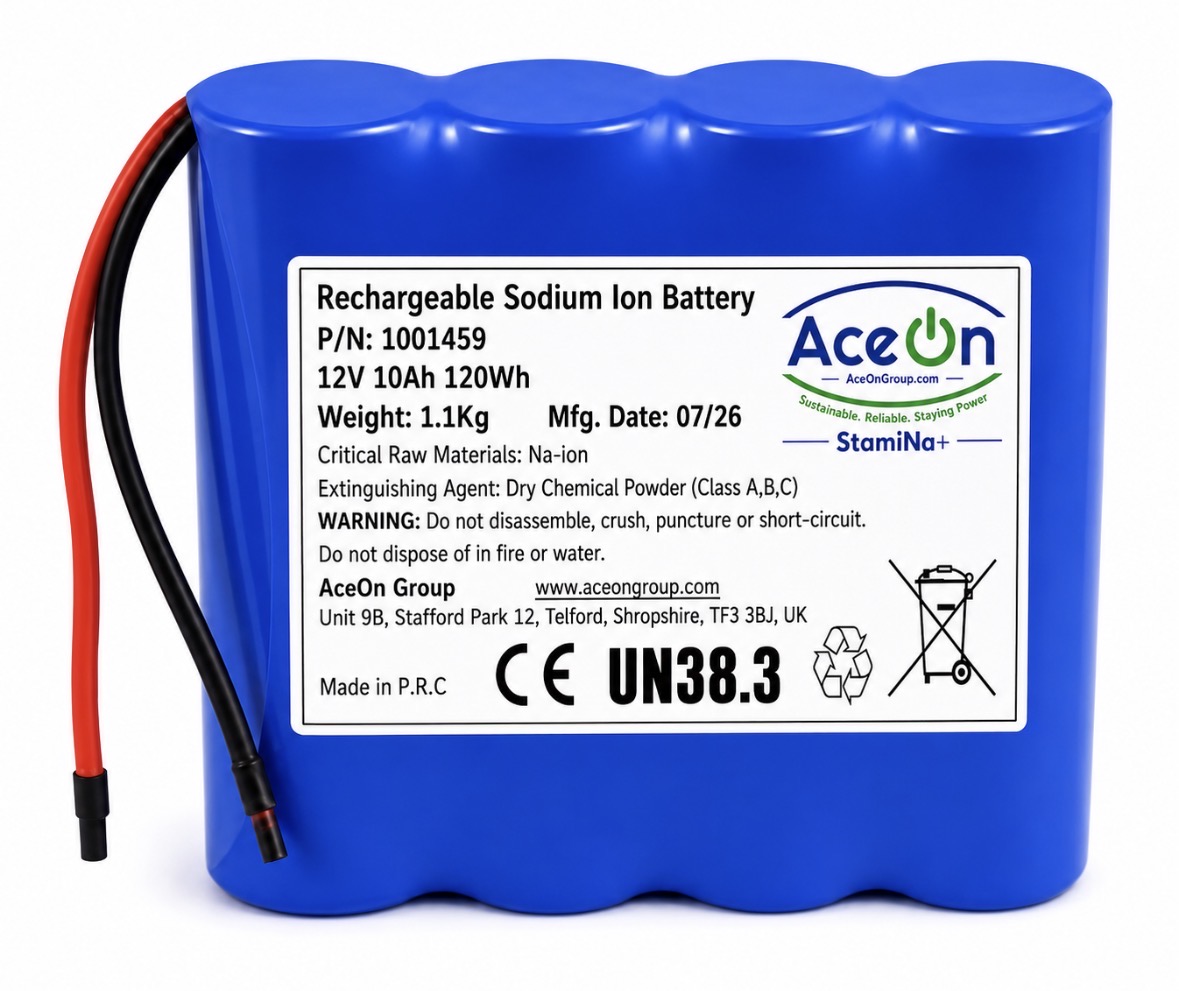

Low-profile
Part 1001459 · 145 × 135 × 34 mm
Flat and wide, for slim enclosures.

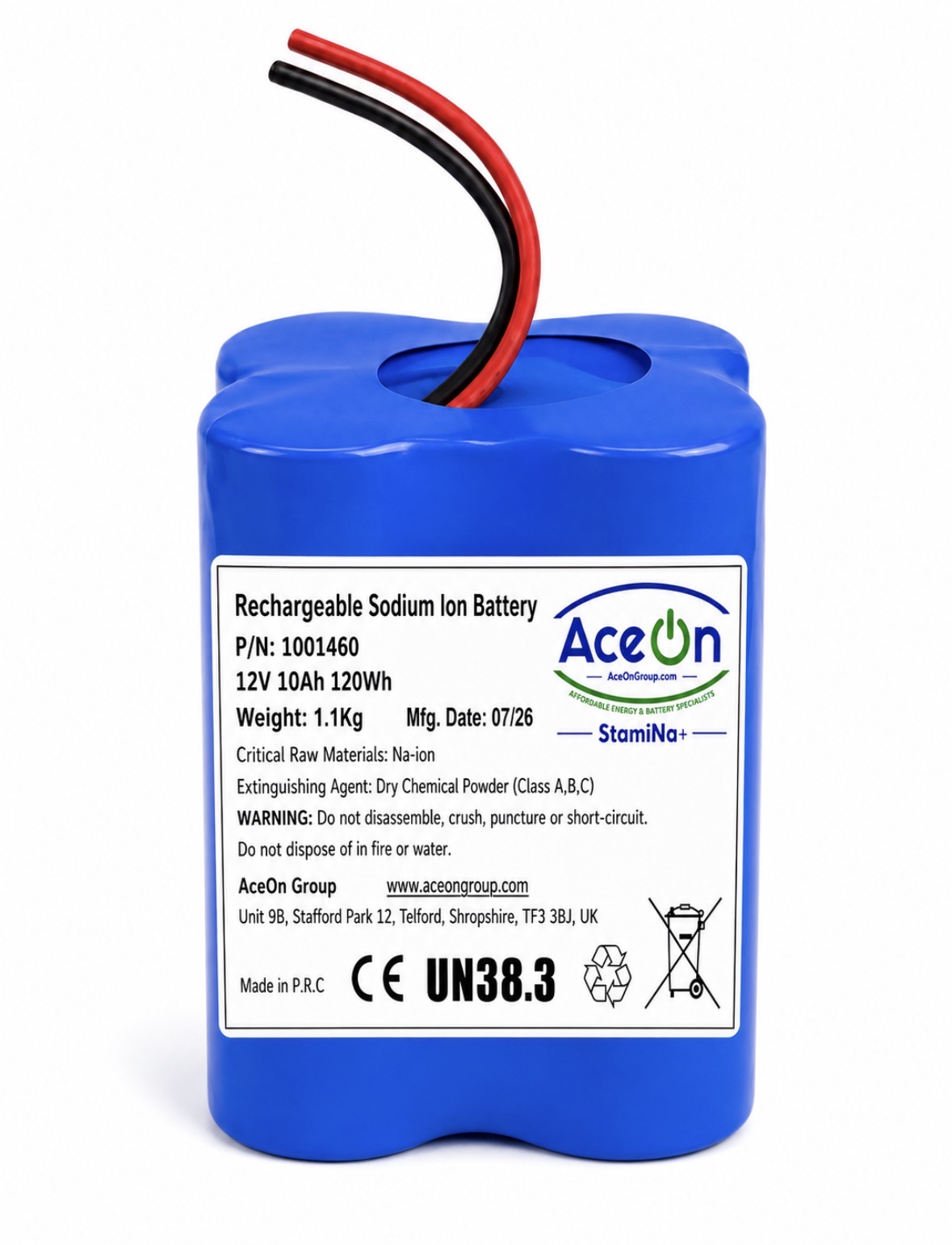

Compact cube
Part 1001460 · 145 × 68 × 68 mm
A cube, for tight spaces.

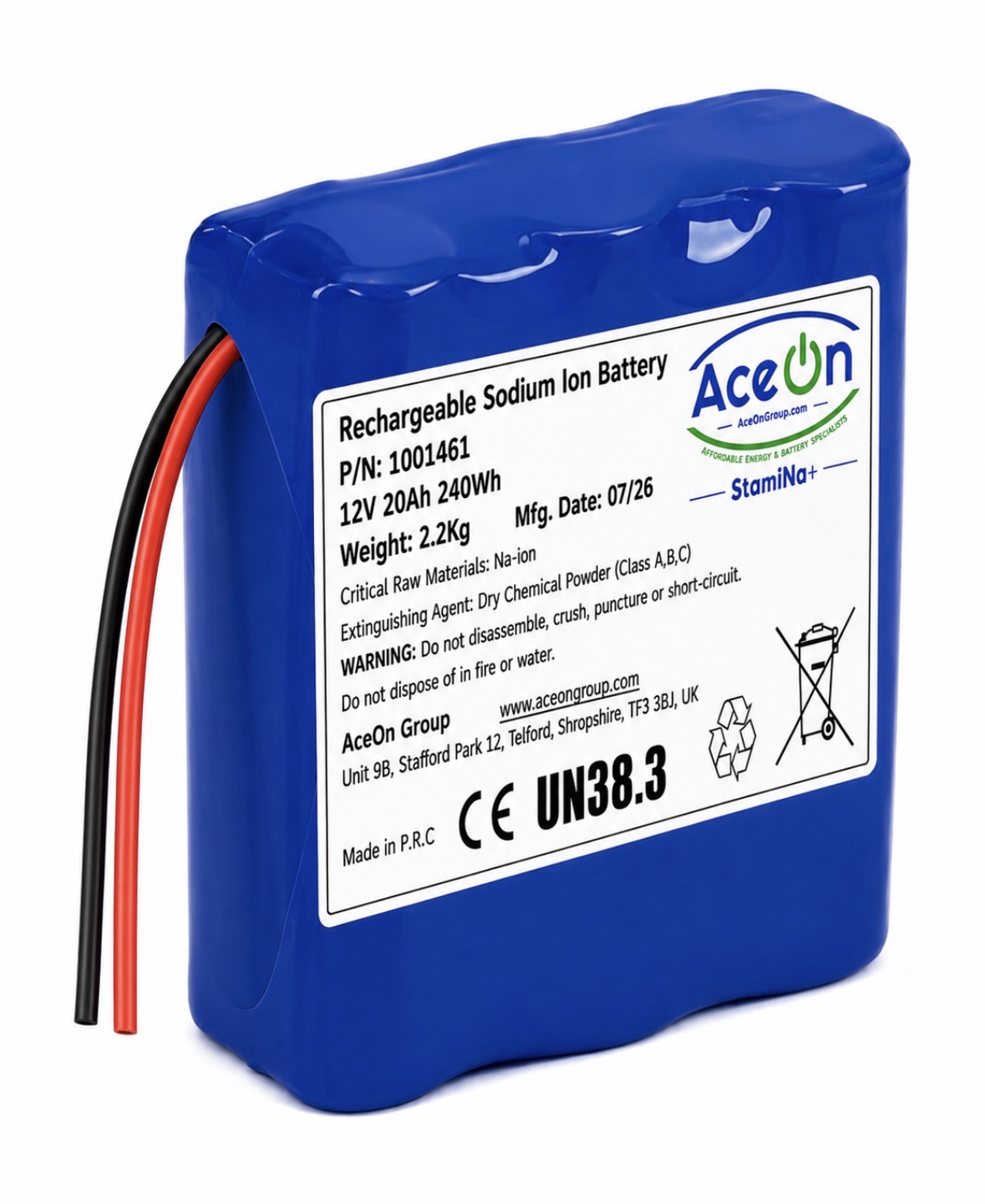

The standard pack. Double the capacity and double the current limits of the 10 Ah, at 2.2 kg.
Standard
Part 1001461 · 145 × 135 × 68 mm
10 A charge and discharge.

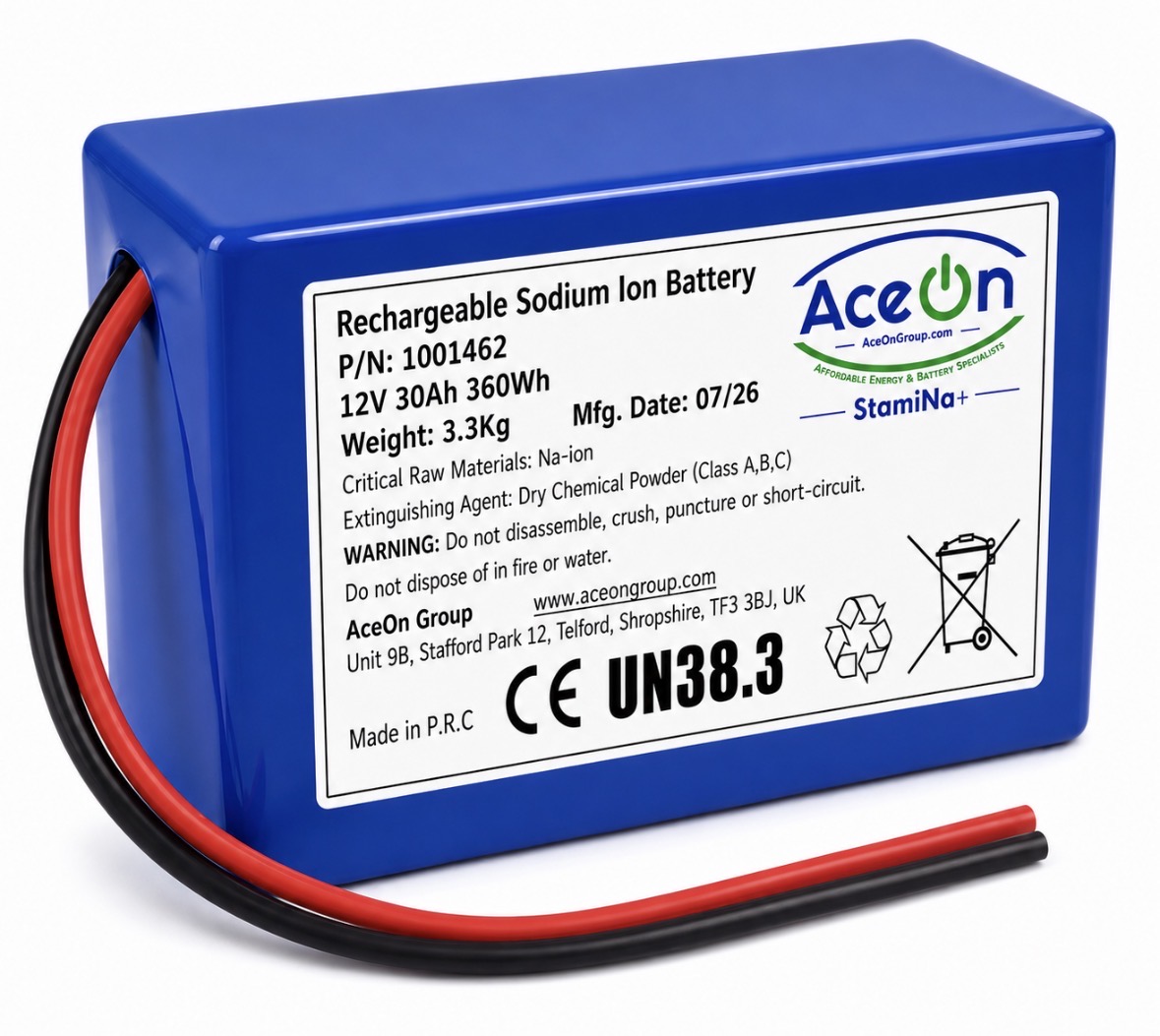

The high-capacity pack. Same 10 A current limits as the 20 Ah, with half again the energy, at 3.3 kg.
High capacity
Part 1001462 · 145 × 202 × 68 mm
Longest runtime in the range.
All four SKUs side by side. Scroll the table sideways on a narrow screen.
Parts 1001459 and 1001460 are electrically identical and differ only in footprint. Flying leads are red positive, black negative.
Common to all four packs.
The pack accepts charge across its full charge window, but the rate is stepped down as temperature falls. A charger following this profile protects cycle life at the cold end.
Rate and current as published for the soft-pack range. Maximum charge current differs by SKU — 5 A for the 10 Ah packs, 10 A for the 20 Ah and 30 Ah — see the specification table above.
StamiNa+ soft packs are qualified against heat, humidity, vibration and abuse. These are the published test results.
Safety: do not disassemble, crush, puncture or short-circuit. Do not dispose of in fire or water.
The fields below are the ones the datasheets cover. If your application is not among them, tell us what it is and we will say plainly whether these packs suit it.
Need more than 30 Ah? The NA12100 12V 100Ah is the step up in capacity — 100 Ah and 1.2 kWh at the same 12 V nominal, with M8 stud terminals and 100 A maximum discharge for solar storage and inverter loads. Note its cycle rating is ≥2,000 cycles at ≥70% capacity, its own figure rather than the ≥5,000 quoted for these soft packs.
Cordless drills, screwdrivers, lawn mowers, industrial vacuums
Oxygen concentrators, patient monitors, infusion pumps, mobility scooters
CCTV cameras, surveillance systems
Industrial AGVs, warehouse robots, cleaning and security robots
Solar street lights, outdoor lighting, diving lights
On request
Tell us the part number or the capacity you need, the quantity and the application. Our Uganda team will come back to you within two working days.
